EXPLOSIVE DETECTION SYSTEMS (EDS)

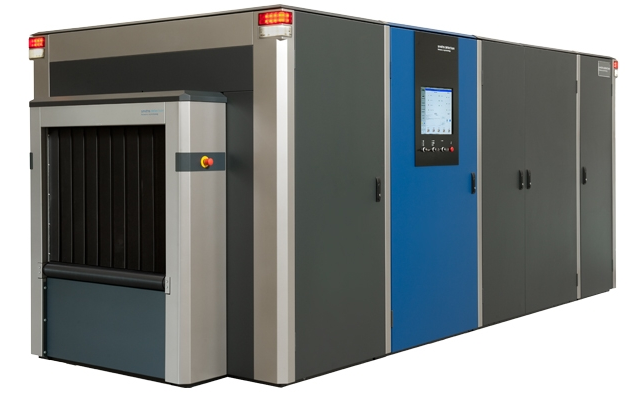

HiScan 10080XCT

Laboratory certified for high-speed checked baggage screening by the United States Transportation Security Administration (TSA)

  • EU/ECAC EDS Standard 3 and 3.1 approved
  • Belt speed of 0.5m/sec (98.5ft/min)
  • High throughput of up to 1800 bags per hour
  • Large tunnel capable of screening objects 100 x 80 cm (39.4 x 31.5in)
  • Dual energy

Options: iCMORE Lithium battery, iCMORE dangerous goods

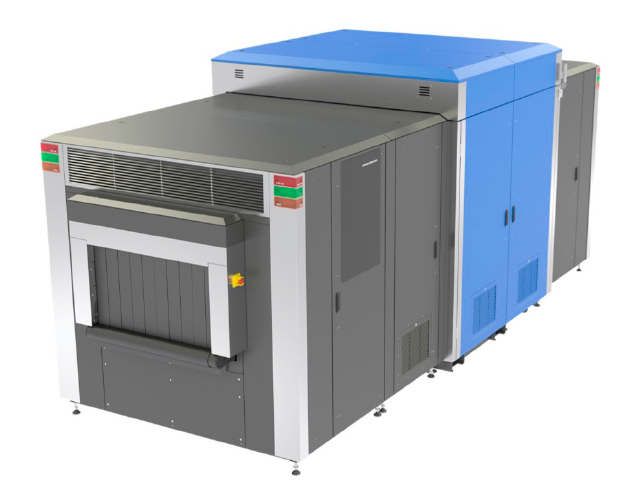

SDX 10060XDi

  • X-Ray Diffraction technology
  • Exceptional material specific detection, including homemade explosives.
  • Increased efficiency thanks to automated resolution for vast majority of alarms
  • Overall FAR significantly reduced
  • Future proof detection - algorithms extend scope
  • Accurate and adaptable identification of narcotics and other contraband's.
  • Designed to meed ECAC Standard 3.1/3.2 and TSA 7.2 plus future regulations. Certification is underway.

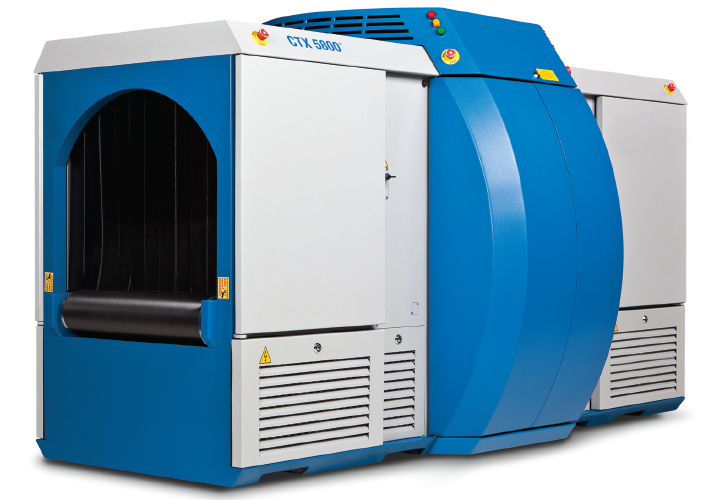

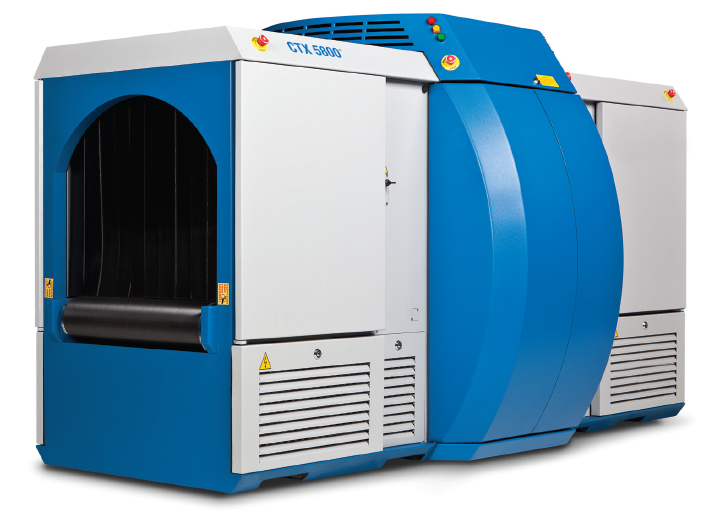

CTX 5800

  • Belt speed of 0,14 m/s
  • Throughput of up to 450 bags per hour
  • Single X-ray generator, dual energy design
  • Configurable for integration with BHS or operation as stand alone
  • Approved with ECAC EDS Standard 3
  • Certified for TSA, CAAC, IPMO

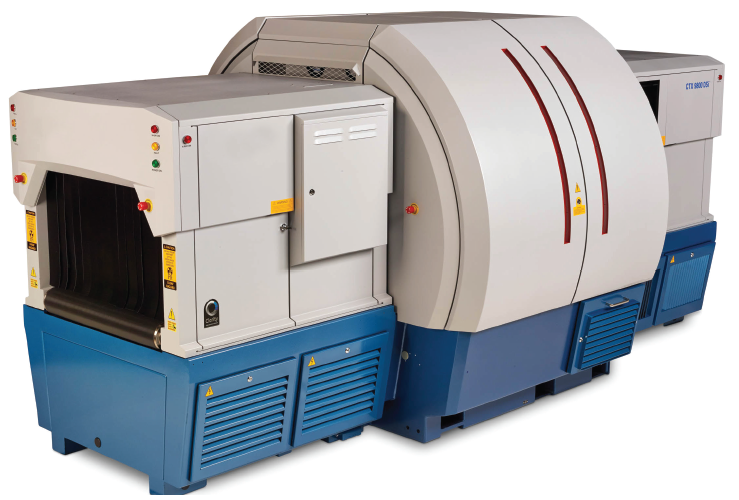

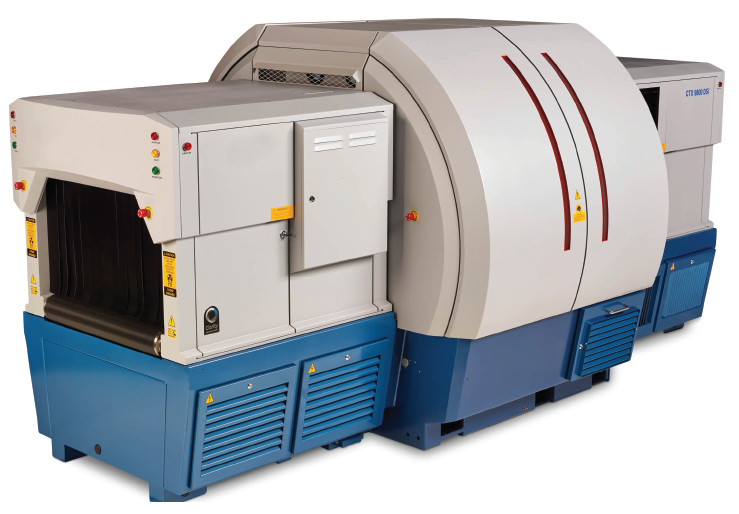

CTX 9800

  • Belt speed of 0,2; 0,3; or 0,5 m/s
  • Throughput of up to 1800 bags per hour
  • Single X-ray generator, dual energy design
  • Approved with ECAC EDS Standard 3 and 3.1
  • Certified for TSA, CAAC, IPMO
