HI-SCAN 145180

  • Especially suitable for standard Euro, British or US pallets.
  • Typical penetration: 35 mm of steel.
  • HI-MAT Plus technology for advanced material distinction.
  • Tunnel size: 1450 mm x 1800 mm;
  • Anode voltage: 160 kV;

Options: HI-TIP, HI-SPOT, SEN, XPlore, IMS, Media Bay to RIDA, HDA.
2 or 5 ton roller tables.

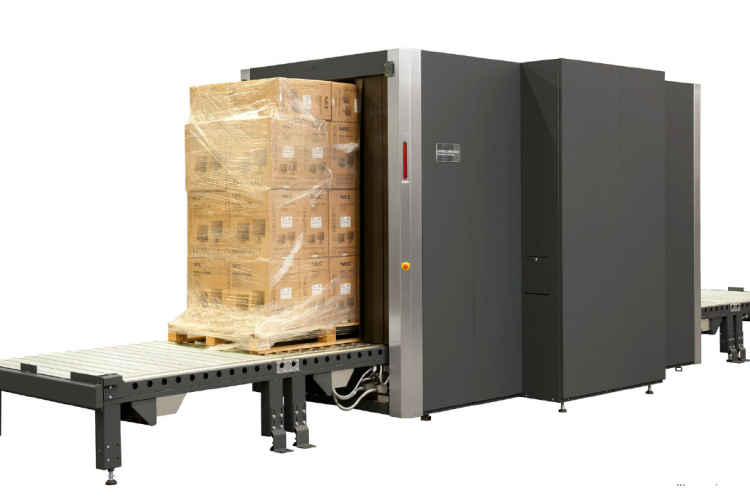

HI-SCAN 145180-2is pro

  • Especially suitable for standard Euro, British or US pallets.
  • Dual View system.
  • Conveyor load: 5 tons.
  • Typical penetration: 58 mm steel.
  • Meets TSA requirements for skid size 1,2 m x 1,2 m x 1,65 m.
  • Tunnel size: 1450 mm x 1800 mm;
  • Anode voltage: 200 kV;

Options: HI-TIP, HI-SPOT, SEN, XPlore, IMS, Media Bay to RIDA, HDA.
5 ton roller tables.

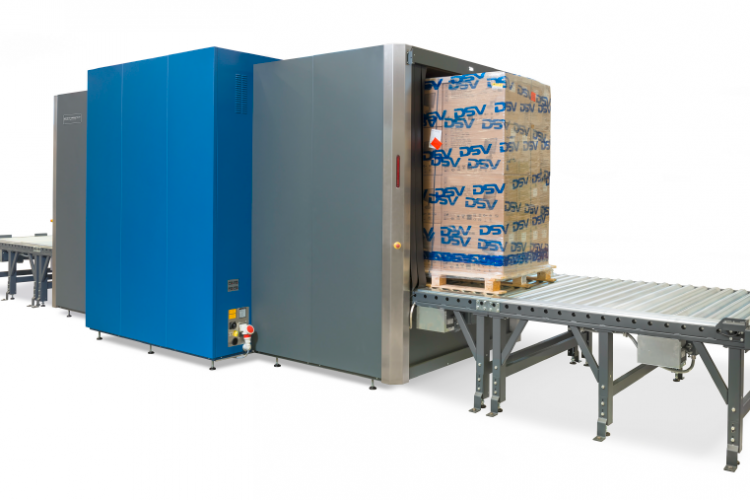

HI-SCAN 180180-2is pro

  • It permits the inspection of pallets and LD-3 airfreight containers.
  • Dual View system.
  • Typical penetration 75 mm of steel.
  • Typical wire resolution AWG 37
  • HI-MAT Plus technology for advanced material distinction.
  • Compact footprint minimizes required floor space
  • Tunnel size: 1800 mm x 1800 mm;
  • Anode voltage: 300 kV;

Options: HI-TIP, HI-SPOT, SEN, XPlore, IMS, Media Bay to RIDA, HDA.
5 ton roller tables.
