PARCELS & BAGGAGE

HI-SCAN 6040i

  • Ideally suited to cabin baggage and other small items in areas with increasing security demands;
  • High image resolution;
  • Tunnel size: 620 mm x 418 mm;
  • Anode voltage: 140 kV;

Options: X-ACT, HI-TIP, HI-SPOT, SEN, XPlore, IMS, Xport, Media Bay to RIDA, ZIP ar CD/RW module, iLane operator consoles.
Rollers of various lenghts.

I-SCAN 6040C

  • High reliability
  • Best-in-class image quality
  • Easy to operate
  • Upgradable electronics & software
  • New generation HiTraX 3 technology allows new functionalities

Tunnel size: 620 mm x 420 mm;
Anode voltage: 160 kV;

HI-SCAN 6040aX

  • Dual view X-ray inspection system.
  • Upgradeable to full capability of automatic explosives detection system HI-SCAN 6040aTiX (Standard 3).
  • High resolution XADA sensor technology.
  • Tunnel size: 620 mm x 418 mm;
  • Anode voltage: 160 kV;

Options: HI-TIP, HI-SPOT, SEN, XPlore, IMS, Xport, Media Bay to RIDA, CD/RW module, HDA, iLane operator consoles.
Rollers of various lenghts.

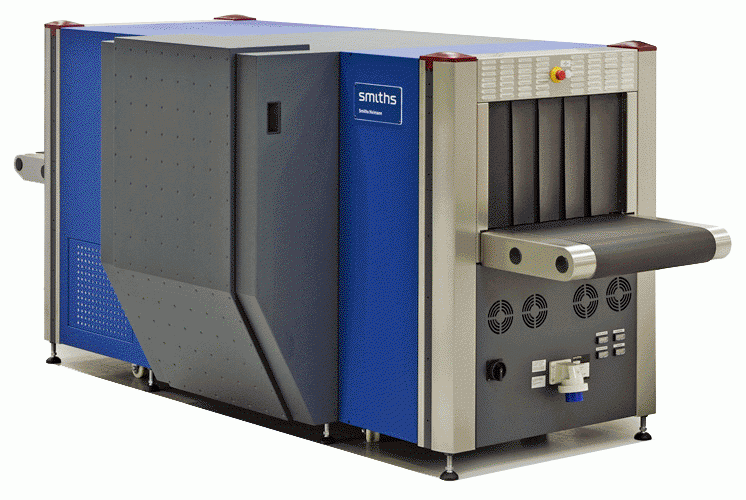

HI-SCAN 6040aTiX

  • Certified (LEDS) Standard 3 Type C.
  • Certified (EDS) Standard 2.
  • Certified (EDS CB C1 and EDS CB C2)
  • Dual view X-ray inspection system.
  • High resolution XADA sensor technology.
  • Tunnel size: 620 mm x 418 mm;
  • Anode voltage: 160 kV;

Options: HI-TIP, HI-SPOT, SEN, XPlore, IMS, Xport, Media Bay to RIDA, CD/RW module, HDA, iLane operator consoles.
Rollers of various lenghts.





HI-SCAN 6046si

  • New X-ray generator with optimised spectrum.
  • Up to 37 mm steel penetration.
  • High resolution XADA sensor technology.
  • Tunnel size: 620 mm x 460 mm;
  • Anode voltage: 160 kV;

Options: X-ACT, HI-TIP, HI-SPOT, SEN, XPlore, IMS, Xport, Media Bay to RIDA, CD/RW module, HDA, iLane operator consoles.
Rollers of various lenghts.

HI-SCAN 6040-2is

  • Certified (LEDS) Standard 3 Type C.
  • Certified (EDS CB C1)
  • Dual view X-ray inspection system.
  • Side panel can be dismounted to fit through doors before installation.
  • Extremely small footprint.
  • Available in SR (Standard Resolution) and HR (High Resolution) versions
  • Tunnel opening: 620 mm x 420 mm;
  • Anode voltage: 160 kV;

Options: HI-TIP, HI-SPOT, SEN, XPlore, IMS, Xport, Media Bay to RIDA, CD/RW module, HDA, iLane operator consoles.
Rollers of various lengths.

HI-SCAN 6040CTiX

  • HS6040CTiX Complies with ECAC EDS CB C2 and C3
  • 3D images.
  • Tomographic explosives detection.
  • Conveyor speed 0,2 m/s.

Tunnel oppening: 620 mm x 420 mm;

HI-SCAN 7555i

  • Ideally suited to screening checked luggage and packages as well as briefcases, handbags and other small items;
  • High image resolution;
  • Tunnel size: 755 mm x 555 mm;
  • Anode voltage: 140 kV;

Opcijos: X-ACT, HI-TIP, HI-SPOT, SEN, XPlore, IMS, Xport, Media Bay to RIDA, CD/RW module, HDA, iLane operator consoles.
Rollers of various lenghts.

HI-SCAN 7555si

  • New X-ray generator with optimised spectrum.
  • High resolution image display with doubled resolution.
  • New high resolution XADA sensor technology.
  • Tunnel size: 755 mm x 555 mm;
  • Anode voltage: 160 kV;

Options: X-ACT, HI-TIP, HI-SPOT, SEN, XPlore, IMS, Xport, Media Bay to RIDA, CD/RW module, HDA, iLane operator consoles.
Rollers of various lenghts.

HI-SCAN 7555aX

  • Dual view X-ray inspection system.
  • Duty conveyor load maximum of 250kg allows screening of heavier freight items.
  • Upgradeable to full capability of automatic explosives detection system HI-SCAN 7555aTiX (Standard 3).
  • High resolution XADA sensor technology.
  • Tunnel size: 755 mm x 555 mm;
  • Anode voltage: 160 kV;

Options: HI-TIP, HI-SPOT, SEN, XPlore, IMS, Xport, Media Bay to RIDA, CD/RW module, HDA, iLane operator consoles.
Rollers of various lenghts.

HI-SCAN 7555aTiX

  • Certified (LEDS) Standard 3 Type C.
  • Certified (EDS) Standard 2.
  • Certified (EDS CB C1 and EDS CB C2)
  • Dual view X-ray inspection system.
  • Duty conveyor load maximum of 250kg allows screening of heavier freight items.
  • High resolution XADA sensor technology.

Tunnel size: 755 mm x 555 mm;
Anode voltage: 160 kV;

Options: HI-TIP, HI-SPOT, SEN, XPlore, IMS, Xport, Media Bay to RIDA, CD/RW module, HDA, iLane operator consoles.
Rollers of various lenghts.
