BOMB/MINE DETECTION

The Vallon Company was founded in 1965.
Detector customization for all conditions in the world.
Many intellectual property rights, such as patents, utility models and design patents.
Vallon GmbH is certified to meet the international standard DIN EN ISO 9001:2008.
Vallon products fulfil the environmental standards MIL STD 810 E, F, G, is a registered NATO manufacturer, NCAGE code C1032.
Vallon mine detectors can be used in almost all soil and water conditions.

1.Metal detector VMF4

  • Top-Level sensitivity
  • Highly effective soil compensation
  • Mil-STD
  • Audio, visual and vibration feedback
  • Weight balanced with excellent ergonomy
  • Extremely compact for transport
  • Bluetooth ® interface
  • Integrated web-server
  • Communication with mobile devices through standard browsers
  • Integrated GPS automatic and manual triggering of waypoints
  • Carbon rod detection
  • Exchangeable search head

2.Wire/Cable Detector VR1 WIREHOUND

  • Suitable to detect wires of 10 cm length and more through high-end radar technology
  • Detection of wires independent of relative position of the wire to the search direction (crosswise or lengthwise)
  • Watertight search head with telescopic pole, hand grip with integrated control unit, electronics and extendable armrest
  • Simple operation with audio, visual and vibration feedback

3.One-Piece Metal Detector VMH3

  • Recommended for daily use
  • Handheld unit 2.5 kg only
  • Power supply: 3 D-size batteries
  • Metal alarm via:
    • Visual LED-bar graph
    • Audio signal
    • Vibration
  • Packing in soft case
  • Slim search head
  • NATO Stock Number 6665-12-366-9914

Options:

  • UXO search head 30 cm
  • UXO search head 60 cm
  • Stick probe
  • Different packing possibilities

4.Dual Sensor Detector VMR3

    • Recommended for metal and metal-free mines and IEDs
    • Search head with metal detector (MD) and ground penetrating radar (GPR)
    • Easy operation
    • Power supply:
      • docking battery pack with Lithium polymer cells, rechargeable
      • docking battery compartment with 4 round cells D-size
    • Alarm via:
      • Visual via LED bargraph
      • Audio signal
      • Vibration
    • Rigid glass fibre reinforced housing
    • Adjustable armrest simple battery docking
    • Charger for 2 Lithium Polymer cells
      • 110 – 230 V AC and
      • 10 – 30 V DC (car battery)
    • Battery compartment for 4 round cells D-size
    • Rigid transportation case for detector with accessories and test pieces

5.Compact Metal Detctor VMW1

  • Extremely small retracted size (40x15x70 cm);
  • Watertight up to 30 m
  • Power supply: 3 C-size batteries
  • Metal alarm via:
    • Visual LED-bar graph
    • Audio signal
  • Non-magnetic headset
  • Packing in hard case
  • NATO Stock Number 6665-12-372-9198

6.Metal Detector VMXC1

  • Slim search head
  • Handheld unit 2.5 kg only
  • Power supply: 3 D-size batteries
  • Metal alarm via:
    • Visual LED
    • Audio signal
    • Vibration
  • Packing in backpack, hard case (optional)
  • NATO Stock Number 6695-12-371-6201

Options:

  • 30 cm search head
  • 60 cm search head for deeply burled objects
  • 2 x 2, 2 x 1, 1 x 1 m search heads

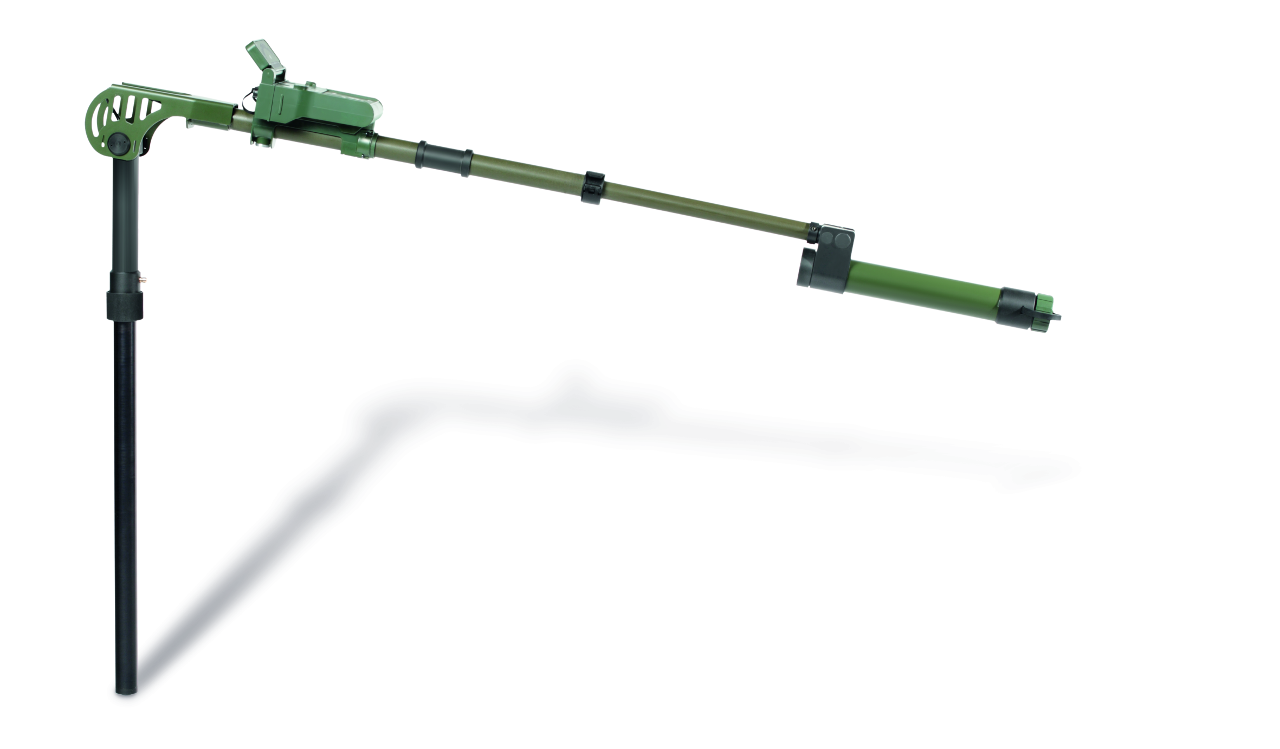

7.Ferrous Locator for Large Depths VX1

  • Land, water and borehole search
  • Handheld unit 3.5 kg only
  • Detachable control unit
  • Digital sensor, detachable
  • Alignment-free sensor tube
  • Ferrous alarm via:
    • - Visual (LED)
    • - Audio signal
  • Data output for computer-aided data survey via:
    • - Bluetooth®
    • - RS232
    • - USB
  • Power supply: 4 bateries type D
  • Options:
    • Cable drum with integrated power supply for borehole search
    • Data logging with VALLON field computer VFC2 and VFC2-N
    • Data evaluation with software VALLON EVA 2000®
    • SEPOS® Borehole

8.Vallon EVA 2000® 2.X

  • Allows the real time navigation of single sensors or sensor platforms with different types of sensors and GPS
  • The calculated objects are shown in different colours for each sensor type
  • Display in grids and tracks
  • Colour map,also combined with data of ferrous locators and metal detectors;
  • Measuring curve of each borehole
  • Object list with magnetic values and position data
  • Converter allow exchange with: .xyz (Geonics), .txt (Foerster), .kml (Google Earth™), .dxf (AutoCad®), .csv and .mdb (ArcGIS), Magneto®, and Geosift Oasis Montaj®
  • VALLON EVA 2000® 2.X can handle background maps or background pictures together with the display of data, tracks and navigation

9.Carrying system VXP3

  • Land survey with 3 or 4 ferrous sensors via central unit VCU2
  • Non-magnetic frame
  • Distance between ferrous sensors:
    • - 0,5 m (3 sensors) or
    • - 0,33 m (4 sensors)
  • Alignment-free sensor tubes
  • Data output for computer-aided data survey via:
    • - Bluetooth®
    • - RS232
  • Power supply: recharable battery pack
  • GPS (optional)
  • Data evaluation with software VALLON EVA 2000® 2.X (optional)
  • Options:
  • For time saving ground survey with up to 4 or 8 sensors
